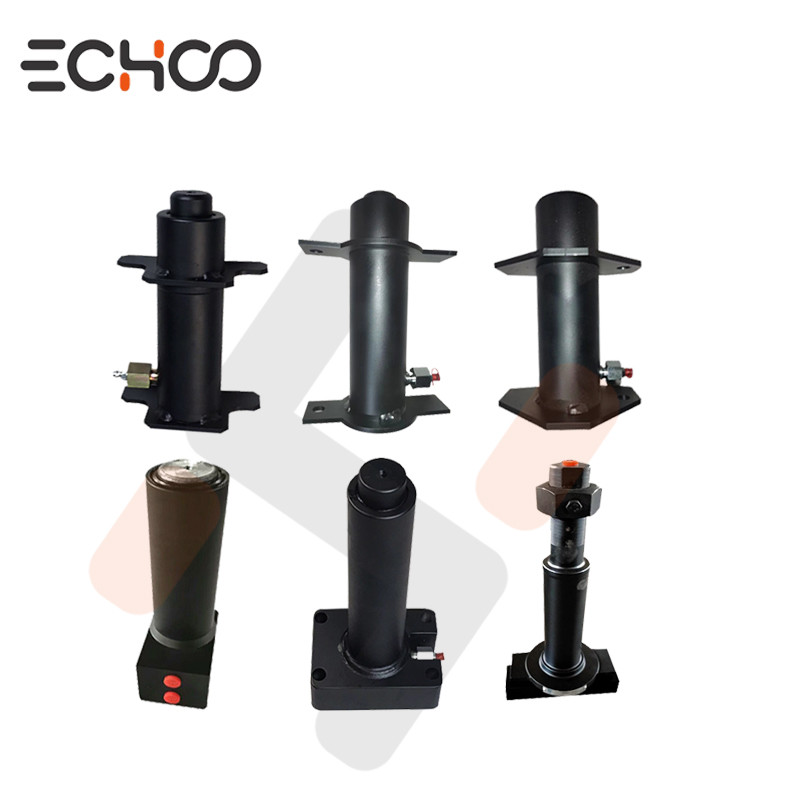

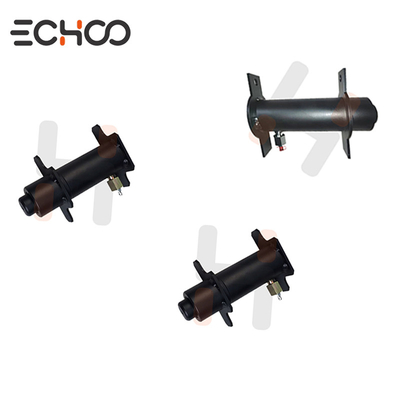

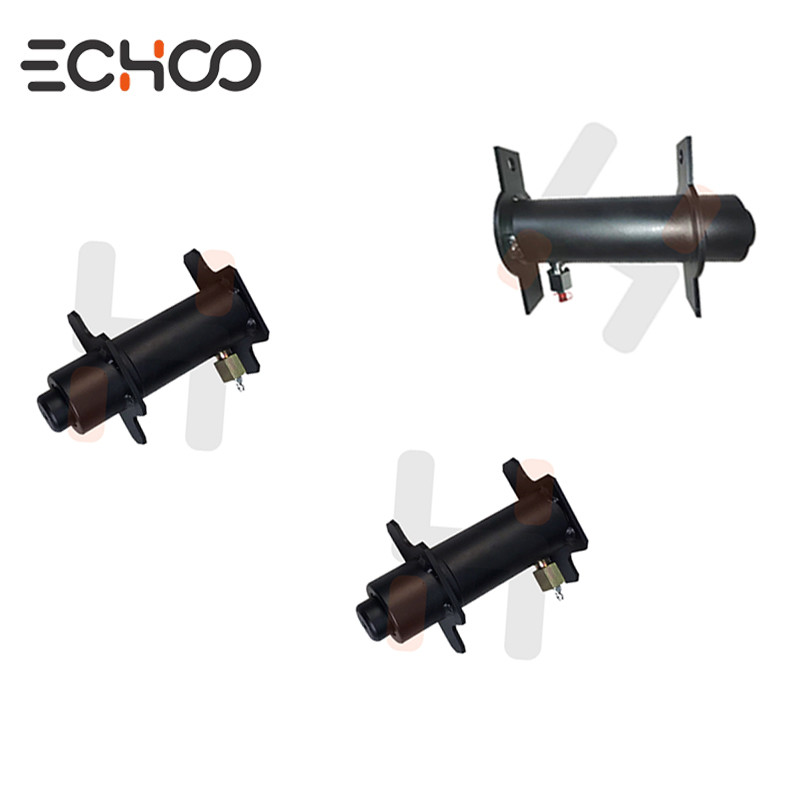

Track Tensioner Cylinder For Yanmar SV08-1 Mini Excavator Chassis Component
Information:
Cylinder, which is used to adjust the track and tension the chain. It includes a grease cylinder. In addition, the track cylinder can be mounted on the outside or inside of the spring, each with its own advantages and disadvantages.
| 1 |
Piston rod |
40# steel & 40Cr
Using highly precision mirror polishing
The thickness of the plate is 0.025mm (electroplating 0.05mm then grinding to 0.025mm to ensure surface hardness reaches HB700) |
| 2 |
Spring |
High-strength spring steel
The recoil size is the same as the original
Roughness as well as original material
Produce as per OEM standard
Taped end spring and standard spring
Fully inspected
|
| 3 |
Nut screw |
45# steel quenched and tempered |
| 4 |
Track cylinder |
Precision casting
Rolling surface treatment process inside
Gloss surface
Track cylinder surface finish RA<0.2(inner and outer)
Cylinder and screw pin press together(others may by welding) |
| 5 |
U york |
Precision casting, high strength, and abrasion resistant |
| 6 |
Seal kit |
Top quality |
| 7 |
Valve |
OEM design with in&out grease valve |
Features:
Cylinder barrels are precision ground to provide long-life seal protection against external damage and corrosion
Rod wipers remove dirt and foreign matter from rods, ensuring long seal life
High-strength tie rods with rolled threads for durability
Induction-hardened chrome-plated rods to resist damage and rust
Applicable Industry
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction works, Energy & Mining
FAQ
1. Are you a trade company or a factory?
Echoo is a manufacturer specializing in undercarriage parts
2. What type of undercarriage parts do you offer?
Steel track group, rubber track, sprocket, roller, bolts&nuts, rubber buffer, track adjuster assy, conveyor chain, conveyor belt, etc.
3. What machines can the parts be used for?
excavators, CTL, pavers, dozers, crawler cranes, tracked dumpers, cold milling machines, and more.
4. What information should I provide if I want to buy a part?
Machinery Model, Part number, or size dimension. Or you can take a picture of your machine or old parts.
